Prerequisites

Before you begin, make sure you have:

An Orderful organization account
Access to your API credentials
A tool for making HTTP requests (curl, Postman, or your preferred language)

Step 1: Get Your API Key

Sign in to your Orderful account:
- Orderful US: https://ui.orderful.com
- Orderful EU: https://ui-eu.orderful.com
Click on your avatar in the upper right corner and select Settings from the drop-down.
Under Organization Settings, select API Credentials.
Get your API Token.

Step 2: Set Up Integration Testing

The fastest way to start testing is with Orderful's built-in demo trading partner:

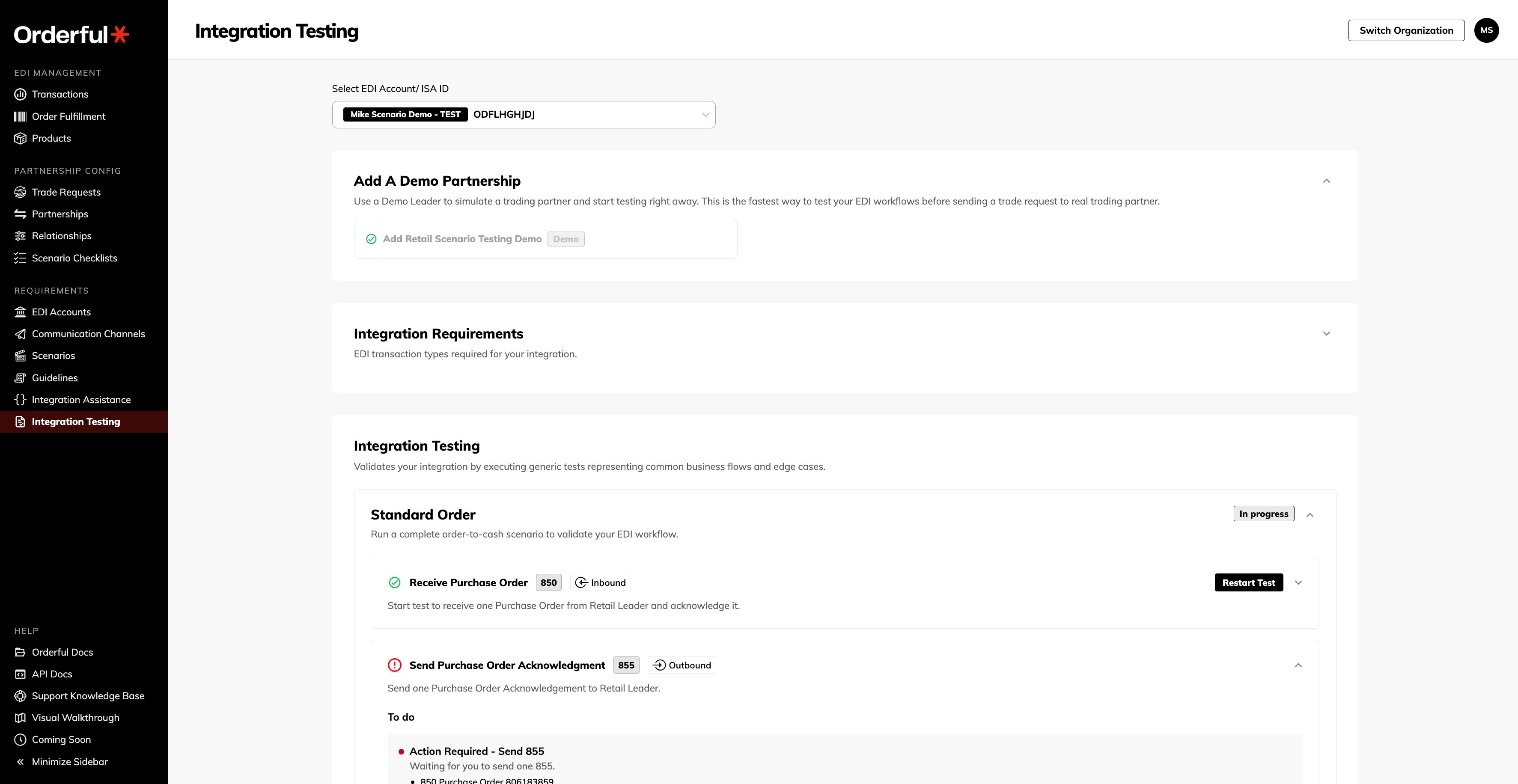

From the left navigation menu, click on Integration Testing.
Select your EDI Account.
Click Add Retail Scenario Testing Demo
You'll now have access to pre-configured test scenarios

This demo partner allows you to:

Receive sample Purchase Orders (850)
Send Purchase Order Acknowledgments (855)
Send Advance Ship Notices (856)
Send Invoices (810)

Step 3: Make Your First API Call

Let's verify your API connection by listing your transactions:

curl -X GET "https://api.orderful.com/v3/transactions?limit=5" \
  -H "orderful-api-key: YOUR_API_KEY" \
  -H "Content-Type: application/json"

Expected Response

{
  "items": [
    {
      "id": 12345,
      "transactionType": "850",
      "direction": "inbound",
      "stream": "test",
      "createdAt": "2026-01-15T10:30:00Z"
    }
  ],
  "meta": {
    "limit": 5,
    "offset": 0,
    "total": 42
  }
}

Different Integration Formats

Orderful supports a variety of formats for document exchange. We strongly recommend the Mosaic schemas where available. Please note that a hybrid approach will work. You can leverage Mosaic schemas where available, and then use OrderfulJSON for any less common document types not yet supported by the Mosaic Platform.

Format	Description	Integrate
Mosaic	Simplified JSON schema designed with System Of Record integration in mind. These schemas are supported by our internal partner mapping and transformation platform, which means that you can use the same integration for all of your partners without having to build in partner-specific logic. See the list of Mosaic Schemas in the left hand menu to see which document types are supported	Guide POST Endpoint
OrderfulJSON	This is our traditional format for exchange. A JSON object modeled closely their X12 and EDIFACT Schema counterparts.	Guide POST Endpoint (v3)
X12	For passthrough transactions. X12 passthrough doesn't take advantage of Orderful's robust document validation engine. Upload X12 documents via traditional EDI communication Channels. AS2, SFTP, VAN etc	Guide

Next Steps

Now that you've made your first API call, here's where to go next:

Choose Your Integration Path - Decide between Mosaic, Orderful JSON, or X12 Passthrough
Mosaic Integration Guide - Build a complete integration using our recommended approach
Order to Cash Workflow - Implement the full PO → POA → ASN → Invoice flow
API Reference - Explore all available endpoints
